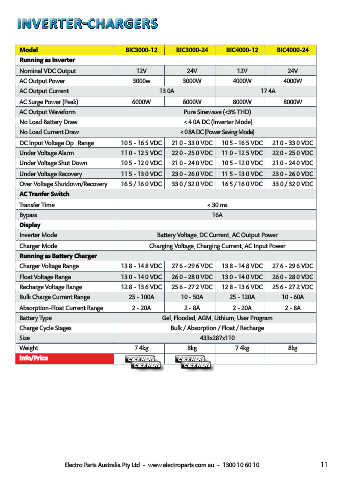

INVERTER-CHARGERS

Model BIC3000-12 BIC3000-24 BIC4000-12 BIC4000-24
Running as Inverter

Nominal VDC Output 12V 24V 12V 24V
AC Output Power 3000w 3000W 4000W 4000W
AC Output Current 13.0A 17.4A
AC Surge Power (Peak) 6000W 6000W 8000W 8000W

AC Output Waveform Pure Sinewave (<3% THD)
No Load Battery Draw < 4.0A DC (Inverter Mode)
No Load Current Draw < 0.8A DC (Power Saving Mode)
DC Input Voltage Op.. Range 10.5 - 16.5 VDC 21.0 - 33.0 VDC 10.5 - 16.5 VDC 21.0 - 33.0 VDC

Under Voltage Alarm 11.0 - 12.5 VDC 22.0 - 25.0 VDC 11.0 - 12.5 VDC 22.0 - 25.0 VDC
Under Voltage Shut Down 10.5 - 12.0 VDC 21.0 - 24.0 VDC 10.5 - 12.0 VDC 21.0 - 24.0 VDC
Under Voltage Recovery 11.5 - 13.0 VDC 23.0 - 26.0 VDC 11.5 - 13.0 VDC 23.0 - 26.0 VDC

Over Voltage Shutdown/Recovery 16.5 / 16.0 VDC 33.0 / 32.0 VDC 16.5 / 16.0 VDC 33.0 / 32.0 VDC
AC Tranfer Switch
Transfer Time < 30 ms
Bypass 16A
Display

Inverter Mode Battery Voltage, DC Current, AC Output Power
Charger Mode Charging Voltage, Charging Current, AC Input Power
Running as Battery Charger

Charger Voltage Range 13.8 - 14.8 VDC 27.6 - 29.6 VDC 13.8 - 14.8 VDC 27.6 - 29.6 VDC
Float Voltage Range 13.0 - 14.0 VDC 26.0 - 28.0 VDC 13.0 - 14.0 VDC 26.0 - 28.0 VDC
Recharge Voltage Range 12.8 - 13.6 VDC 25.6 - 27.2 VDC 12.8 - 13.6 VDC 25.6 - 27.2 VDC
Bulk Charge Current Range 25 - 100A 10 - 50A 25 - 120A 10 - 60A

Absorption-Float Current Range 2 - 20A 2 - 8A 2 - 20A 2 - 8A
Battery Type Gel, Flooded, AGM, Lithium, User Program
Charge Cycle Stages Bulk / Absorption / Float / Recharge
Size 433x287x110

Weight 7.4kg 8kg 7.4kg 8kg
Info/Price
