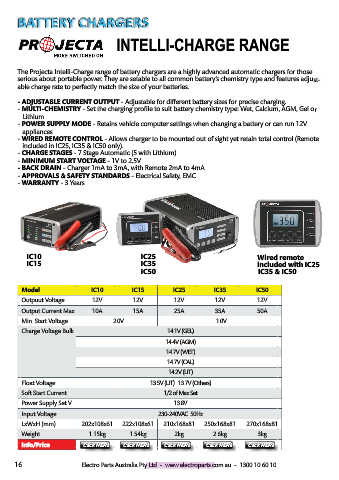

Page 18 - Catalogue-EP-August26

GER
CHAR
BATTERY CHARGERS
B

T
A
Y
TER
S
INTELLI-CHARGE RANGE
The Projecta Intelli-Charge range of battery chargers are a highly advanced automatic chargers for those
serious about portable power. They are setable to all common battery’s chemistry type and features adjust-
able charge rate to perfectly match the size of your batteries.

- ADJUSTABLE CURRENT OUTPUT - Adjustable for different battery sizes for precise charging.
- MULTI-CHEMISTRY - Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM, Gel or
Lithium
- POWER SUPPLY MODE - Retains vehicle computer settings when changing a battery or can run 12V
appliances
- WIRED REMOTE CONTROL - Allows charger to be mounted out of sight yet retain total control (Remote
included in IC25, IC35 & IC50 only).
- CHARGE STAGES - 7 Stage Automatic (5 with Lithium)
- MINIMUM START VOLTAGE - 1V to 2.5V
- BACK DRAIN - Charger 1mA to 3mA, with Remote 2mA to 4mA
- APPROVALS & SAFETY STANDARDS - Electrical Safety, EMC
- WARRANTY - 3 Years

IC10 IC25 Wired remote
IC15 IC35 included with IC25,
IC50 IC35 & IC50

Model IC10 IC15 IC25 IC35 IC50
Outpuut Voltage 12V 12V 12V 12V 12V
Output Current Max 10A 15A 25A 35A 50A

Min. Start Voltage 2.0V 1.0V
Charge Voltage Bulk 14.1V (GEL)
14.4V (AGM)
14.7V (WET)

14.7V (CAL)
14.2V (LIT)
Float Voltage 13.5V (LIT) 13.7V (Others)
Soft Start Current 1/2 of Max Set

Power Supply Set V 13.8V
Input Voltage 230-240VAC 50Hz
LxWxH (mm) 202x108x61 222x108x61 210x168x81 250x168x81 270x168x81
Weight 1.15kg 1.54kg 2kg 2.6kg 3kg
