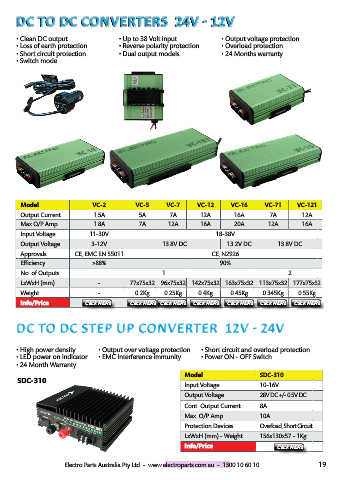

DC TO DC CONVERTERS 24V - 12V
• Clean DC output • Up to 38 Volt input • Output voltage protection
• Loss of earth protection • Reverse polarity protection • Overload protection
• Short circuit protection • Dual output models • 24 Months warranty
• Switch mode

Model VC-2 VC-5 VC-7 VC-12 VC-16 VC-71 VC-121
Output Current 1.5A 5A 7A 12A 16A 7A 12A
Max O/P Amp 1.8A 7A 12A 16A 20A 12A 16A

Input Voltage 11-30V 18-38V
Output Voltage 3-12V 13.8V DC 13.2V DC 13.8V DC
Approvals CE, EMC EN 55011 CE, N2926
Efficiency >88% 90%
No. of Outputs 1 2
LxWxH (mm) - 77x75x32 96x75x32 142x75x32 163x75x32 113x75x32 177x75x32
Weight - 0.2Kg 0.25Kg 0.4Kg 0.45Kg 0.345Kg 0.55Kg

Info/Price

DC TO DC STEP UP CONVERTER 12V - 24V
R
R
T
E
D
2
V
-
V

2
4
1

P C
P U
O
V
N
O D
C T
C S
E
T
E
• High power density • Output over voltage protection • Short circuit and overload protection
• LED power on indicator • EMC Interference immunity • Power ON - OFF Switch
• 24 Month Warranty
Model SDC-310
SDC-310
Input Voltage 10-16V
Output Voltage 28V DC +/- 0.5V DC
Cont. Output Current 8A
Max. O/P Amp 10A
Protection Devices Overload, Short Circuit
LxWxH (mm) - Weight 156x130x57 - 1Kg
Info/Price
Electro Parts Australia Pty Ltd - www.electroparts.com.au - 1300 10 60 10 19
