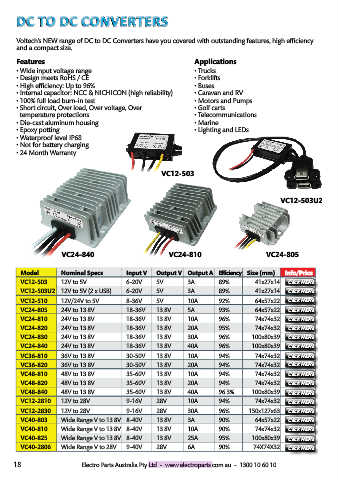

DC T O DC C ONVER TER S
DC TO DC CONVERTERS

Voltech’s NEW range of DC to DC Converters have you covered with outstanding features, high efficiency
and a compact size.

Features Applications
• Wide input voltage range • Trucks
• Design meets RoHS / CE • Forklifts
• High efficiency: Up to 96% • Buses
• Internal capacitor: NCC & NICHICON (high reliability) • Caravan and RV
• 100% full load burn-in test • Motors and Pumps
• Short circuit, Over load, Over voltage, Over • Golf carts
temperature protections • Telecommunications
• Die-cast aluminum housing • Marine
• Epoxy potting • Lighting and LEDs
• Waterproof level IP68
• Not for battery charging
• 24 Month Warranty

VC12-503

VC12-503U2

VC24-840 VC24-810 VC24-805

Model Nominal Specs Input V Output V Output A Efficiency Size (mm) Info/Price
VC12-503 12V to 5V 6-20V 5V 3A 89% 41x27x14
VC12-503U2 12V to 5V (2 x USB) 6-20V 5V 3A 89% 41x27x14
VC12-510 12V/24V to 5V 8-36V 5V 10A 92% 64x57x22
VC24-805 24V to 13.8V 18-36V 13.8V 5A 93% 64x57x22
VC24-810 24V to 13.8V 18-36V 13.8V 10A 96% 74x74x32
VC24-820 24V to 13.8V 18-36V 13.8V 20A 95% 74x74x32
VC24-830 24V to 13.8V 18-36V 13.8V 30A 96% 100x80x39
VC24-840 24V to 13.8V 18-36V 13.8V 40A 96% 100x80x39
VC36-810 36V to 13.8V 30-50V 13.8V 10A 94% 74x74x32
VC36-820 36V to 13.8V 30-50V 13.8V 20A 94% 74x74x32
VC48-810 48V to 13.8V 35-60V 13.8V 10A 94% 74x74x32
VC48-820 48V to 13.8V 35-60V 13.8V 20A 94% 74x74x32
VC48-840 48V to 13.8V 35-60V 13.8V 40A 96.3% 100x80x39
VC12-2810 12V to 28V 9-16V 28V 10A 94% 74x74x32
VC12-2830 12V to 28V 9-16V 28V 30A 96% 150x127x63
VC40-803 Wide Range V to 13.8V 8-40V 13.8V 3A 90% 64x57x22
VC40-810 Wide Range V to 13.8V 8-40V 13.8V 10A 90% 74x74x32
VC40-825 Wide Range V to 13.8V 8-40V 13.8V 25A 95% 100x80x39
VC40-2806 Wide Range V to 28V 9-40V 28V 6A 90% 74X74X32
