B A T TER Y CHAR GER S
BATTERY CHARGERS

P SERIES - 24V - 5 STAGE CHARGERS

• 5 Stage Charger
• Can be used as a power supply
• For WET, LiFePO4, AGM, GEL, Lead Crystal & Calcium
• Microprocessor controlled charging
• MCU Monitoring & Data Logging
• Temp sensor included
• 24 Month Warranty

The maximum output current of the Voltech P Series can also be adjusted in 10% increments to match the
battery bank capacity.

Model BC-2415P BC-2420P BC-2430P
Output Current 15A 20A 30A
Charge Voltage Absorption Float
WET 29V 27V
LiFePO4 29.2V 27.2V
LiFePO4 #2 28.8V 27.2V
AGM 28.8V 26.4V HBR-3100 - Remote Control/Display
AGM #2 28.6V 26.8V Features
GEL 2 28.4V 27.4V • Monitor charge status
CALCIUM 30.2V 27.6V • Voltage & current output
LEAD CRYSTAL 29.4V 27.2V • Condition & fault display
• Warning alarm
User 1 & 2 (Prog.) 24 - 32V • Turn output on/off
Soft Start Voltage <21v • 122L x 60W x 15H mm
No. of Outputs 2
Soft Start Current 1/2 of Max
Input Voltage 200-240V 50Hz
AC Fuses AC: T3.15A AC: T4A AC: T8A
DC Fuses DC: 25Ax2 DC: 30Ax2 DC: 30Ax2
LxWxH with bracket 288x240x90 288x240x90 350x240x90
(mm) - Weight 3.2Kg 3.2Kg 4.2Kg
Info/Price HBR-3100 Info/Price

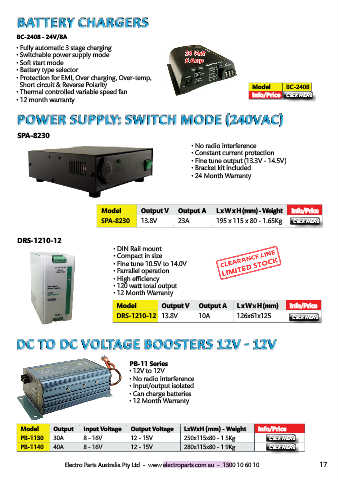

BC-2408 - 24V/8A

Model BC-2408
Voltage 24V
Output Current (Max) 7.5A
Input Voltage 180-260V AC 50Hz
Absorption - GEL/WET/CAL 28.2V/28.8V/31.1V
Float - Selectable 26.4/27/27.6V
Efficiency >85% • Fully automatic 3 stage charging
DC (+) Outputs 2 • Switchable power supply mode
• Soft start mode
Rec Battery Size 30 - 80 AH • Battery type selector
LxWxH (mm) - Weight 173x160x61 - 1.4kg • Protection for EMI, Over charging, Over-temp,
Info/Price Short circuit & Reverse Polarity
• Thermal controlled variable speed fan
• 12 month warranty
