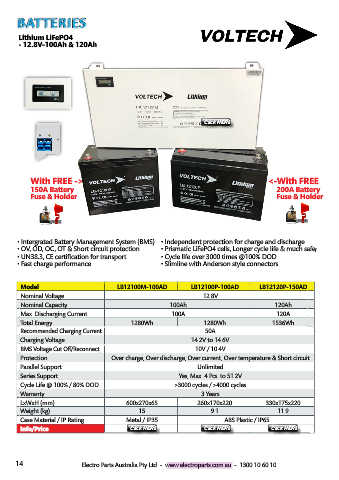

Page 16 - Catalogue-EP-July-2024

TERIE
BATTERIES
B
A
S
T
Lithium LiFePO4
- 12.8V-100Ah & 120Ah

• Intergrated Battery Management System (BMS) • Independent protection for charge and discharge
• OV, OD, OC, OT & Short circuit protection • Prismatic LiFePO4 cells, Longer cycle life & much safer
• UN38.3, CE certification for transport • Cycle life over 3000 times @100% DOD
• Fast charge performance • Slimline LB-12100M with Anderson style connectors
• LB12120P-150AD is a 120AH battery that will discharge 150A

Model LB-12100M LB-12100P LB12120P-150AD
Nominal Voltage 12.8V
Nominal Capacity 100Ah 100Ah 120Ah
Max. Discharging Current (Continuous) 100A 150A
Pulse Discharge Current 210A ± 3S
Total Energy 1280Wh 1280Wh 1536Wh
Max. Charging Current 100A 120A
Recommended Charging Current 50A
Charging Voltage 14.2 - 14.6V
BMS Voltage Cut Off / Reconnect 10V / 12V
Protection Over charge, Over discharge, Over current, Over temperature & Short circuit
Parallel Support Unlimited
Series Support Yes, Max. 4 Pcs. 12-48V
Cycle Life @ 100% / 80% DOD >3000 cycles / >4000 cycles
Warranty 3 Years
LxWxH (mm) 600x80x320 260x170x230 330x175x230
Weight (kg) 15.5 11 12.6
Case Material / IP Rating Metal / IP50 ABS Plastic / IP56 ABS Plastic / IP56
Info/Price
