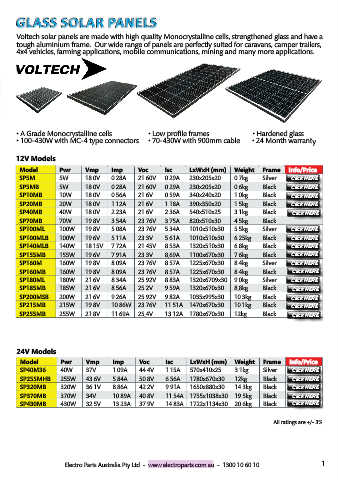

GLASS SOLAR PANELS





























       Voltech solar panels are made with high quality Monocrystalline cells, strengthened glass and have a
       tough aluminium frame.  Our wide range of panels are perfectly suited for caravans, camper trailers,
       4x4 vehicles, farming applications, mobile communications, mining and many more applications.
       • A Grade Monocrystalline cells                   • New lower profile models
       • New compact and light weight models             • Hardened glass
       • 100-370W with MC-4 type connectors              • 70-370W with 900mm cable
       • Preferred by many caravan & RV OEM’s            • 24 Month warranty                         SIZES

      12V Model

        Model         Pwr      Vmp      Imp      Voc       Isc     LxWxH (mm)      Weight    Frame    Info/Price
        SP5M          5W       18.0V    0.28A    21.60V    0.29A   230x205x20      0.7kg     Silver
        SP10M         10W      18.0V    0.56A    21.6V     0.59A   340x240x20      1.0kg     Silver
        SP20M         20W      18.0V    1.12A    21.6V     1.18A   430x350x20      1.7kg     Silver
        SP40M         40W      18.0V    2.23A    21.6V     2.36A   540x510x25      3.1kg     Silver
        SP70M         70W      18.0V    3.89A    21.6V     4.12A   820x510x30      4.5kg     Silver
        SP100ML       100W     19.6V    5.11A    23.3V     5.61A   1010x510x30     6.25kg    Silver
        SP100MLB      100W     19.6V    5.11A    23.3V     5.61A   1010x510x30     6.25kg    Black
        SP130ML       130W     18.15V   7.16A    21.45V    7.92A   1320x510x30     8.15kg    Silver
        SP140M        140W     19.6V    7.15A    23.3V     7.85A   1100x670x30     8.75kg    Silver
        SP140MB       140W     19.6V    7.15A    23.3V     7.85A   1100x670x30     8.75kg    Black
        SP160M        160W     19.8V    8.09A    23.76V    8.57A   1225x670x30     8.4kg     Silver
        SP160MB       160W     19.8V    8.09A    23.76V    8.57A   1225x670x30     8.4kg     Black
        SP180ML       180W     21.6V    8.34A    25.92V    8.83A   1320x6709x30    9.0kg     Silver
        SP180MLB      180W     21.6V    8.34A    25.92V    8.83A   1320x670x30     9.0kg     Black
        SP200M        200W     19.8V    10.11A   23.76V    10.71A  1470x670x30     10.1kg    Silver
        SP200MB       200W     19.8V    10.11A   23.76V    10.71A  1470x670x30     10.1kg    Black
        SP200MSB *    200W     18.0V    11.12A   21.6V     11.78A  1035x995x30     10.3kg    Black
                                                                                     * 200mm cable from each juncton box
       24V Model

        Model         Pwr      Vmp      Imp       Voc      Isc      LxWxH (mm)     Weight    Frame    Info/Price
        SP40M36       40W      37V      1.09A     44.4V    1.15A    570x410x25     3.1kg     Silver
        SP300M        300W     34.8V    8.63A     41.76V   9.14A    1650x880x30    14.3      Silver
        SP370MB       370W     34V      10.89A    40.8V    11.54A   1755x1038x30   19.5kg    Black

                                                                                                All ratings are +/- 3%
