TRICKLE CHARGE SOLAR PANELS
TRICKLE CHAR GE SOLAR P ANELS

Compact & Portable Solar Powered Trickle Chargers, Amorphous
Cells, Mounted in rugged & light frame using double glass
structure for strength & durability. They are Pre-wired with 2.5Mtr
cable. Use for keeping your batteries topped-up & to guard against
self-discharge when left un-attended. 24 Month warranty.

Model Pwr Vmp Imp Voc Isc LxWxH (mm) Info/Price
STC-15 1.5W 17.5V 85.7MA 21V 107MA 350x125x15
STC-25 2.5W 18.0V 0.138A 21V 1.71A 352x125x13
STC-45 4.5W 18.0V 0.25A 21V 3.42A 353x235x14
Pwr ratings are +/- 5%

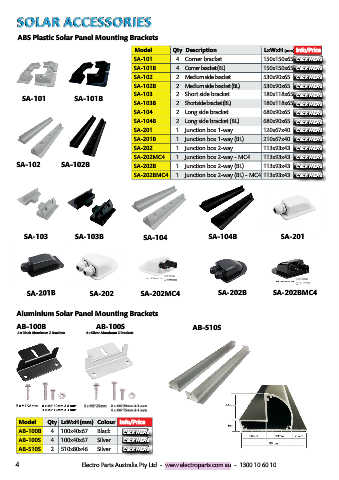

SOLAR ACCESSORIES
SSORIE
CCE
A
SOLAR
S
Extruded Aluminium Solar Panel Mounting Brackets

AB-510S
AB-670S
Model Qty LxWxH (mm) Colour Info/Price
AB-510S 2 510x80x46 Silver
AB-670S 2 670x80X46 Silver

ABS Plastic Solar Panel Mounting Brackets

SA-101 SA-101B SA-102 SA-102B SA-103 SA-103B

Model Qty Description LxWxH (mm) Info/Price
SA-101 4 Corner bracket 150x150x65
SA-101B 4 Corner bracket (BL) 150x150x65
SA-102 2 Medium side bracket 530x90x65 SA-104 SA-104B
SA-102B 2 Medium side bracket 530x90x65
SA-103 2 Short side bracket 180x118x65
SA-103B 2 Short side bracket (BL) 180x118x65
SA-104 2 Long side bracket 680x90x65
SA-104B 2 Long side bracket (BL) 680x90x65 SA-201 SA-202
SA-201 1 Junction box 1-way 120x67x40
SA-201B 1 Junction box 1-way (BL) 210x67x40
SA-202 1 Junction box 2-way 110x90x50
SA-202B 1 Junction box 2-way (BL) 110x90x50
SA-201B SA-202B
