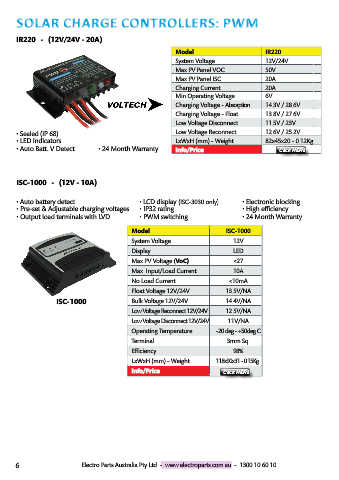

SOLAR CHARGE CONTROLLERS: PWM
PWM
IR220 - (12V/24V - 20A)
Model IR220
System Voltage 12V/24V
Max PV Panel VOC 50V
Max PV Panel ISC 20A
Charging Current 20A
Min Operating Voltage 6V
Charging Voltage - Absorption 14.3V / 28.6V
Charging Voltage - Float 13.8V / 27.6V
Low Voltage Disconnect 11.5V / 23V
• Sealed (IP 68) Low Voltage Reconnect 12.6V / 25.2V
• LED Indicators LxWxH (mm) - Weight 82x45x20 - 0.12Kg
• Auto Batt. V Detect • 24 Month Warranty Info/Price

ISC-1000 - (12V - 10A)
ISC-3030 - (12V/24V - 30A)

• Auto battery detect • LCD display (ISC-3030 only) • Electronic blocking
• Pre-set & Adjustable charging voltages • IP32 rating • High efficiency
• Output load terminals with LVD • PWM switching • 24 Month Warranty

Model ISC-1000 ISC-3030

System Voltage 12V 12V/24V
Display LED LCD
Max PV Voltage (VoC) <27 <45V
Max. Input/Load Current 10A 30A
No Load Current <10mA <20mA

ISC-1000 Float Voltage 12V/24V 13.5V/NA 13.5V/27V
Bulk Voltage 12V/24V 14.4V/NA 13.8V-14.8V/27.6V-29.6V
Low Voltage Reconnect 12V/24V 12.5V/NA 12V/24V
Low Voltage Disconnect 12V/24V 11V/NA 11V/22V
Operating Temperature -20 deg - +50deg C

Terminal 3mm Sq. 8mm Sq.
Efficiency 98%
LxWxH (mm) - Weight 118x90x31 - 0.15Kg 169x97x44 - 0.40Kg
ISC-3030 Info/Price
